产品概述
描述
The L9348 is a monolithic integrated quad low side driver realized in advanced Multipower-BCD technology. It is intended to drive inductive loads (relays, electromagnetic valves) in automotive and industrial applications.
-
所有功能
- SIGNAL- AND POWER-GROUND-LOSS SHUTDOWN
- OVERTEMPERATURE SHUTDOWN
- 3.3V CMOS COMPATIBLE INPUTS AND STATUS
- OUTPUT SHORT CIRCUIT CURRENT PROTECTION
- LOW ON-RESISTANCE 2 X 0.2
, 2 X 0.35 (TYP.) - SUPPLY VOLTAGE RANGE: 4.8 TO 18V
- OUTPUT VOLTAGE CLAMP DURING RECIRCULATION OF INDUCTIVE LOADS
- OUTPUT VOLTAGE UP TO 40V
- LOW POWER DISSIPATION DURING RECIRCULATION OF INDUCTIVE LOADS BY INTEGRATED FREE WHEELING DIODES (3A-DRIVERS ONLY)
- REAL TIME DIAGNOSTIC FUNCTIONS
- OUTPUT CURRENT CAPABILITY 2 X 5A AND 2 X 3A

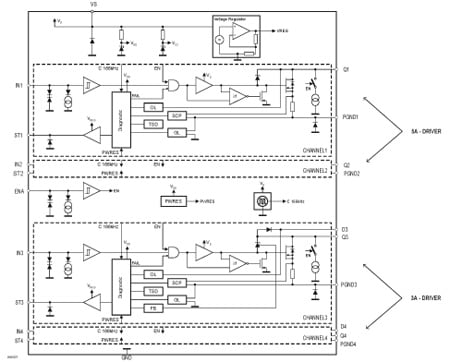

电路原理图
