L4979MD

批量生产
Design Win

低压降稳压器

下载数据手册 Order Direct

产品概述

描述

L4979D and L4979MD are low dropout linear regulators with microprocessor control functions such as low voltage reset, watchdog, on/off control. Typical quiescent current is 100 μA in very low output current mode and enabled regulator. The devices drop to 6 μA with not enabled regulators.

On chip trimming results in high output voltage accuracy (+/-2%). Accuracy is kept over wide temperature range, line and load variation.

The maximum input voltage is 40 V. The max output current is internally limited. Internal temperature protection disables the voltage regulator output.

  • 所有功能

    • AEC-Q100 qualified
    • Operating DC supply voltage range 5.6 V to 31 V
    • Low quiescent current (6 μA typ. @ 25 °C with enable low)
    • High precision output voltage (+/-2%)
    • Low dropout voltage less than 0.5 V
    • Reset circuit sensing the output voltage down to 1 V
    • Programmable reset pulse delay with external capacitor
    • Watchdog
    • Programmable watchdog timer with external capacitor
    • Thermal shutdown and short circuit protection
    • Automotive temperature range (Tj = -40 °C to 150 °C)
    • Enable input for enabling/disabling the voltage regulator output

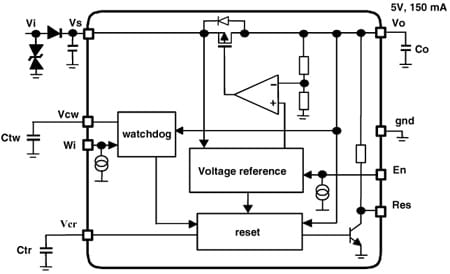

电路原理图

EDA符号、封装和3D模型

STMicroelectronics - L4979MD

Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.

Please select one model supplier :

Symbols

符号

Footprints

封装

3D model

3D模型

质量与可靠性

产品型号 Marketing Status 等级规格 符合RoHS级别 材料声明**
L4979MD013TR
批量生产
SO-20 汽车应用 Ecopack2 (**)

L4979MD013TR

Package:

SO-20

Material Declaration**:

PDF XML

Marketing Status

批量生产

Package

SO-20

Grade

Automotive

RoHS Compliance Grade

Ecopack2 (**)

(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此,它们可能不是100%适用于特定的设备。有关特定设备的信息,请联系 销售支持
