产品概述
描述
The TEA2025B is a monolithic integrated circuit housed in the 12+2+2 PowerDIP16 package, intended for use as a dual or bridge power audio amplifier in portable radio cassette players.
-
所有功能
- Dual or bridge connection modes
- Few external components
- Supply voltage 3 V to 15 V
- High channel separation
- Very low switch-on/off noise
- Max gain of 45 dB with adjustable external resistor
- Soft clipping
- Thermal protection
- PO= 2 · 1 W, VS= 6 V, RL= 4 Ω
- PO= 2 · 2.3 W, VS= 9 V, RL= 4 Ω
- PO= 2 · 0.1 W, VS= 3 V, RL= 4 Ω

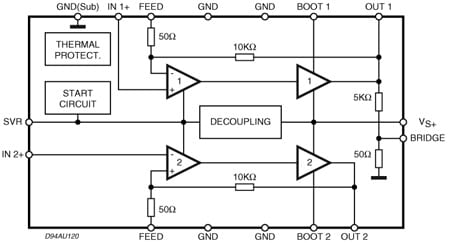

电路原理图
