产品概述
描述
The STA020 is a monolithic CMOS device which encodes and transmits audio data according to the AES/EBU, IEC 958, S/PDIF, & EIAJ CP-340 interface standards. It supports 96 kHz sample rate operation.
The STA020 accepts audio and digital data which is then multiplexed, encoded and driven onto a cable.
The audio serial port is double-buffered and capable of supporting a wide variety of formats.
The STA020 multiplexes the channel, user, and validity data directly from the serial input pins with dedicated input pins for the most important channel status bits.
-
所有功能
- Monolithic digital audio interface transmitter
- 3.3 V supply voltage
- Supports:
- AES/EBU, IEC 958
- S/PDIF, & EIAJ CP-340
- Professional and consumer formats
- Parity bits and CRC codes generated
- Transparent mode allows direct connection of STA020 and STA120

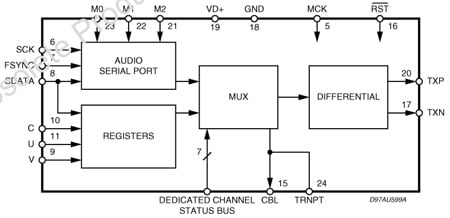

电路原理图
EDA符号、封装和3D模型
意法半导体 - STA020
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
符号
封装
3D模型
