产品概要
描述
The TSC888 measures a small differential voltage on a high-side shunt resistor and translates it into a ground-referenced output voltage. The gain is internally fixed.
Wide input common-mode voltage range, low quiescent current, and tiny SOT23-5 packaging make the TSC888 ideal for use in a wide variety of applications.
Input common-mode and power supply voltages are independent. Common-mode voltage can range from 2.8 V to 24 V in operating conditions.
Current consumption lower than 1 mA and wide supply voltage range allow to connect the power supply to either side of the current measurement shunt with minimal error.
-
性能一览
- Buffered output
- Independent supply and input common-mode voltages
- Wide supply voltage range: 4 to 24 V
- Wide common-mode operating range: 2.8 V to 24 V
- Internally fixed gain: 20 V/V, 50 V/V or 100 V/V
- Low current consumption: ICC max = 1 mA

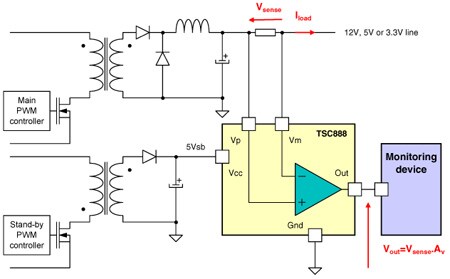

电路原理图
特别推荐
EDA Symbols, Footprints and 3D Models
STMicroelectronics - TSC888
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
Symbols
Footprints
3D models
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|
| TSC888AILT | Active 产品已量产 | SOT23-5L | Industrial | Ecopack3 | 10 | 2023-05-23T00:00:00.000+02:00 | |
| TSC888BILT | Active 产品已量产 | SOT23-5L | Industrial | Ecopack3 | 10 | 2023-05-23T00:00:00.000+02:00 | |
| TSC888CILT | Active 产品已量产 | SOT23-5L | Industrial | Ecopack3 | 10 | 2023-05-23T00:00:00.000+02:00 |
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
You’re now leaving st.com and will be re-directed to our Partner’s website.
For the latest innovations and solutions from ST, sign up for our newsletters.
Sample & Buy
| Part Number | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | Package | Packing Type | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Operating temperature (°C) | Operating Temperature (°C) (max) | Grade | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 最小值 | 最大值 | ||||||||||||||
| TSC888CILT | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
| |||||||||||
| TSC888BILT | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
| |||||||||||
| TSC888AILT | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
| |||||||||||
TSC888CILT Active
TSC888BILT Active
TSC888AILT Active
