产品概要
描述
The L2720W is a monolithic integrated circuit in SO16 (Wide) package, intended for use as a power operational amplifier in a wide range of applications including servo amplifiers and power supplies.
It is particularly suitable for driving coils, inductive loads and for use in motors.
The high gain and high output power capability provide superior performance whenever an operational amplifier/power booster combination is required.
-
性能一览
- Output current up to 1 A
- Operates at low voltages
- Single or split supply
- Large common-mode and differential-mode range
- Low input-offset voltage
- Ground compatible inputs
- Low saturation voltage
- Thermal shutdown
- Clamp diode

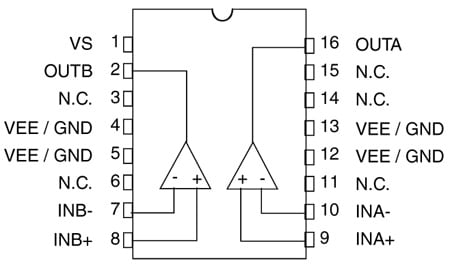

电路原理图
EDA Symbols, Footprints and 3D Models
STMicroelectronics - L2720W
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
Symbols
Footprints
3D models
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | 符合RoHS级别 | Longevity Commitment | Longevity Starting Date | Material Declaration** |
|---|---|---|---|---|---|---|---|
| L2720W13TR | NRND 不推荐用于新设计。量产仅供支持现有生产。 | SO-16W | Industrial | Ecopack3 | - | - |
