SCT055HU65G3AG automotive-grade silicon carbide power MOSFET 650V-30A 58 mOhm typ. in an HU3PAK package

650V automotive-grade silicon-carbide STPOWER MOSFET in an SMD HU3PAK package with top side cooling

Combining the intrinsic features of ST's 3rd-generation STPOWER SiC technology with the high thermal performance of the top side cooling package, the SCT055HU65G3AG is ideal for OBC and DC/DC converters in electric vehicle applications, and power conversion for industrial.



The SCT055HU65G3AG features a very low RDS(on) over the entire temperature range combined with low capacitance and very high switching operations, which improve application performance in frequency, energy efficiency, system size and weight reduction. Furthermore, the advanced surface mounted (SMD) HU3PAK package with top side cooling allows a smaller form factor, higher design flexibility and better thermal performance while increasing the power density.

Thanks to the additional Kelvin-source pin, designers can achieve better efficiency due to reduced turn-on/off switching losses.

For more info on the HU3PAK package, visit the page Top-side cooling SMD packages for automotive applications.






Key features

  • AEC-Q101 qualified
  • Very low RDS(on) over the entire temperature range
  • High-speed switching performance
  • Very fast and robust intrinsic body diode
  • Source sensing pin for increased efficiency



Application examples


On-board chargers

Charging stations


DC-DC converters

Power supply units

Uninterruptible power supplies



Recommended resources






STPOWER Gen3 SiC MOSFETs: higher efficiency for next generation electric vehicle applications
Flyer

ST Gen3 SiC MOSFETs feature very low RDS(ON) and are the optimal choice for automotive applications, allowing extended mileage range, optimized systems size and weight for electric vehicles. Our Gen3 SiC MOSFET portfolio covers a broad BVDss Voltage range, 650 V, 750 V, 900 V and 1200 V. Devices are offered in state-ofthe-art packages designed to meet the highest automotive and industrial standards.



Automotive solutions for Electro-Mobility
Brochure

ST provides leading-edge solutions for hybrid (HEV), and battery electric vehicles (BEV) based upon proven and innovative technologies and backed up with our extensive power management experience. Best-in-class silicon and SiC (Silicon Carbide) MOSFETs and diodes, IGBTs, protection components, isolated gate drivers and microcontrollers make up an unrivalled offer for electric vehicle power management.

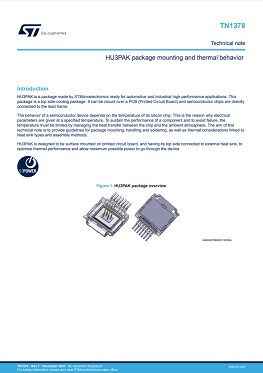

HU3PAK package mounting and thermal behavior
Technical note

HU3PAK is a package made by STMicroelectronics ready for automotive and industrial high-performance applications. This package is a top side-cooling package. It can be mount over a PCB (Printed Circuit Board) and semiconductor chips are directly connected to the lead frame.



Silicon Carbide - Energy handling for a sustainable future
Presentation video

Watch this 2-minute video to discover how our SiC portfolio can help improve energy generation, conversion, distribution and storage solutions.








Learn more about how our automotive SiC power modules can revolutionize your e-mobility applications
On-demand webinar

In this 1-hour on-demand webinar, discover why silicon-carbide (SiC) technology can dramatically reduce the total cost of ownership in electric vehicle (EV) applications such as traction inverters, DC/DC converters and on-board chargers (OBC).

We will also take an in-depth look at how our new SiC power modules and packages optimize the performance of these key EV applications.
