1200 V 75 A high-speed STPOWER IGBT

800V high-temperature Triacs for thermal-intensive, heavy-duty applications

1200v 75a igbt

Boosts energy efficiency, reduces paralleling and simplifies design scalability for solar inverters and other high-frequency applications

Based on advanced trench-gate field-stop technology, our H series of high-speed 1200V IGBTs represents an optimum compromise between conduction and switching losses to maximize the efficiency of high switching frequency converters. Moreover, a slightly positive VCE(sat) temperature coefficient and very tight parameter distribution result in safer paralleling operation.

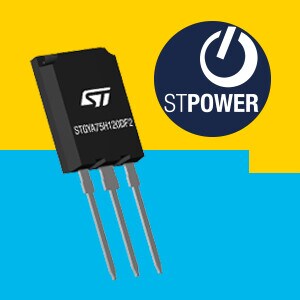

Key features of STGYA75H120DF2

  • Lower switching losses
  • Slightly lower gate charge

Application examples

ups UPS
solar panel Solar inverters
welding Welding
pfc PFC
