产品概述
描述

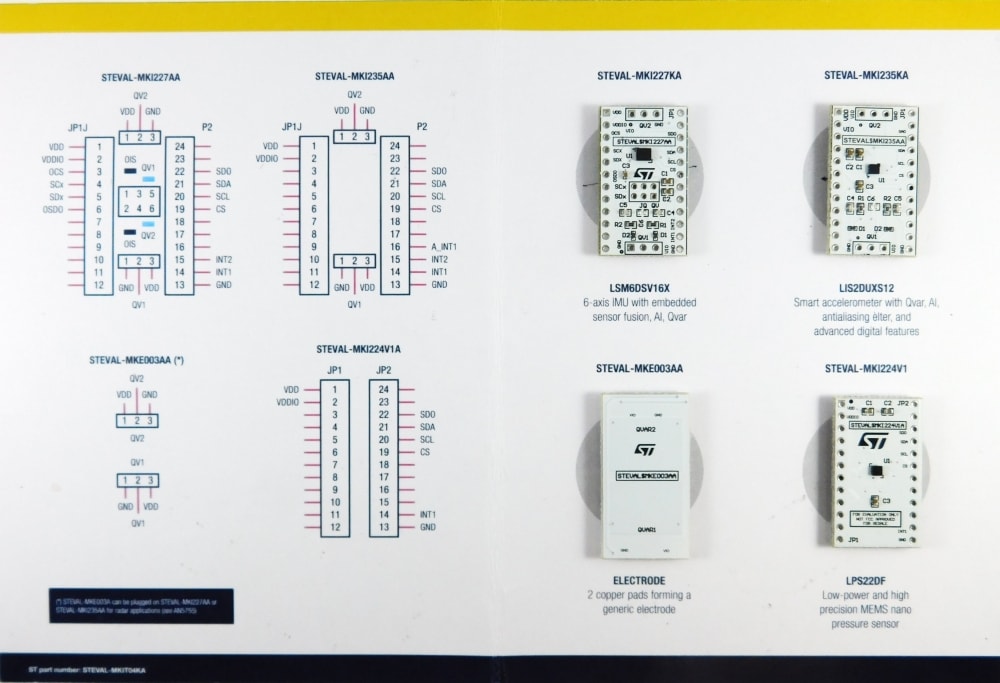

The STEVAL-MKIT04KA is composed by four different adapters DIL24: the STEVAL-MKI224V1, the STEVAL-MKI227A contained in the STEVAL-MKI227KA adapter kit, the STEVAL-MKI235A contained in the STEVAL-MKI235KA adapter kit, the STEVAL-MKE003A contained in the STEVAL-MKI227KA and STEVAL-MKI235KA adapter kit.
All SMD devices are soldered on the boards. Male and female connectors must be manually soldered.
The STEVAL-MKE003A can be plugged over the STEVAL-MKI227A or the STEVAL-MKI235A board.
In case the application using LSM6DSV16X is fixed it is possible to solder a 0 ohm resistor instead of shunt in the JQ connector.
These adapters are singularly supported by the STEVAL-MKI109V3 motherboards, which includes a high performance 32-bit microcontroller functioning as a bridge between the sensor and a PC.
On the STEVAL-MKI109V3 it is possible to use the downloadable graphical user interface (Unico-GUI or MEMS-Studio), or dedicated software routines for customized applications.
It is also possible to plug the single board into X-NUCLEO-IKS01A3.
-
所有功能
- User friendly LSM6DSV16X, LIS2DUXS12, LPS22DF board
- Complete LSM6DSV16X, LIS2DUXS12, LPS22DF pinout for a standard DIL 24 sockets
- Fully compatible with the STEVAL-MKI109V3 motherboard
- RoHS compliant
您可能还会喜欢...
特别推荐
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
MCSDK Board Description (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 1.0 | 20 Mar 2024 | 20 Mar 2024 |
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 20 Mar 2024 | 20 Mar 2024 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 20 Mar 2024 | 20 Mar 2024 |
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | WEEE Compliant | Longevity Commitment | Longevity Starting Date | 材料声明** |
|---|---|---|---|---|---|---|---|---|
| STEVAL-MKIT04KA | 批量生产 | CARD | 工业 | Ecopack2 | Yes | - | - | |
STEVAL-MKIT04KA
Package:
CARDMaterial Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
样片和购买
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | 供应商 | 核心产品 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STEVAL-MKIT04KA | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
|
STEVAL-MKIT04KA 批量生产
