X-NUCLEO-OUT19A1

批量生产
Design Win

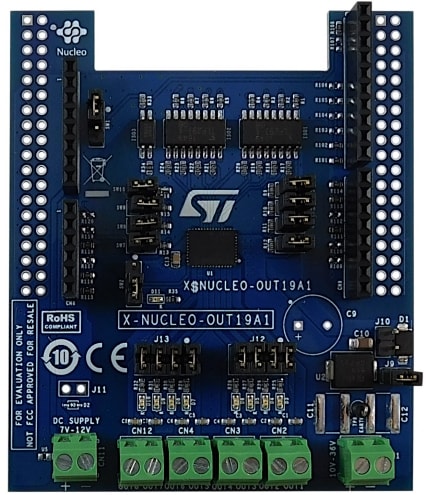

Industrial digital output expansion board based on IPS8160HQ-1 for STM32 Nucleo

下载数据摘要 Order Direct

产品概述

描述

The X-NUCLEO-OUT19A1 industrial digital output expansion board for STM32Nucleo provides a powerful and flexible environment for the evaluation of the driving and diagnostic capabilities of the IPS8160HQ-1 octal high-side smart power solid state relay, in a digital output module connected to 1 A industrial loads.

The X-NUCLEO-OUT19A1 interfaces with the microcontroller on the STM32 Nucleo via 5 kV optocouplers driven by GPIO pins and Arduino R3 connectors.

The expansion board can be connected to either a NUCLEO-F401RE or a NUCLEO-G431RB development board.

It is also possible to evaluate a system composed of a X-NUCLEO-OUT19A1 stacked on other expansion boards.

  • 所有功能

    • Based on the IPS8160HQ-1 octal high-side switch, which features:Operating range 10.5 to 36 VLow power dissipation (RFast decay for inductive loadsUnder-voltage lock-outOverload and over-temperature protectionsLoss of ground protectionQFN48L 8x6 mm package
    • Application board voltage operating range: 15 to 33 V
    • Extended voltage operating range (J9 open) up to 36 V
    • Operating current: up to 1 A per channel
    • Green LEDs for outputs on/off status (J12 and J13 close 1-2, 3-4, 5-6, 7-8)
    • Red LED for common overheating diagnostic (SW2 close 2-3)
    • 5 kV galvanic isolation
    • Supply rail reverse polarity protection
    • Compatible with STM32 Nucleo development boards
    • Equipped with Arduino UNO R3 connectors
    • RoHS and China RoHS compliant
