产品概述
描述

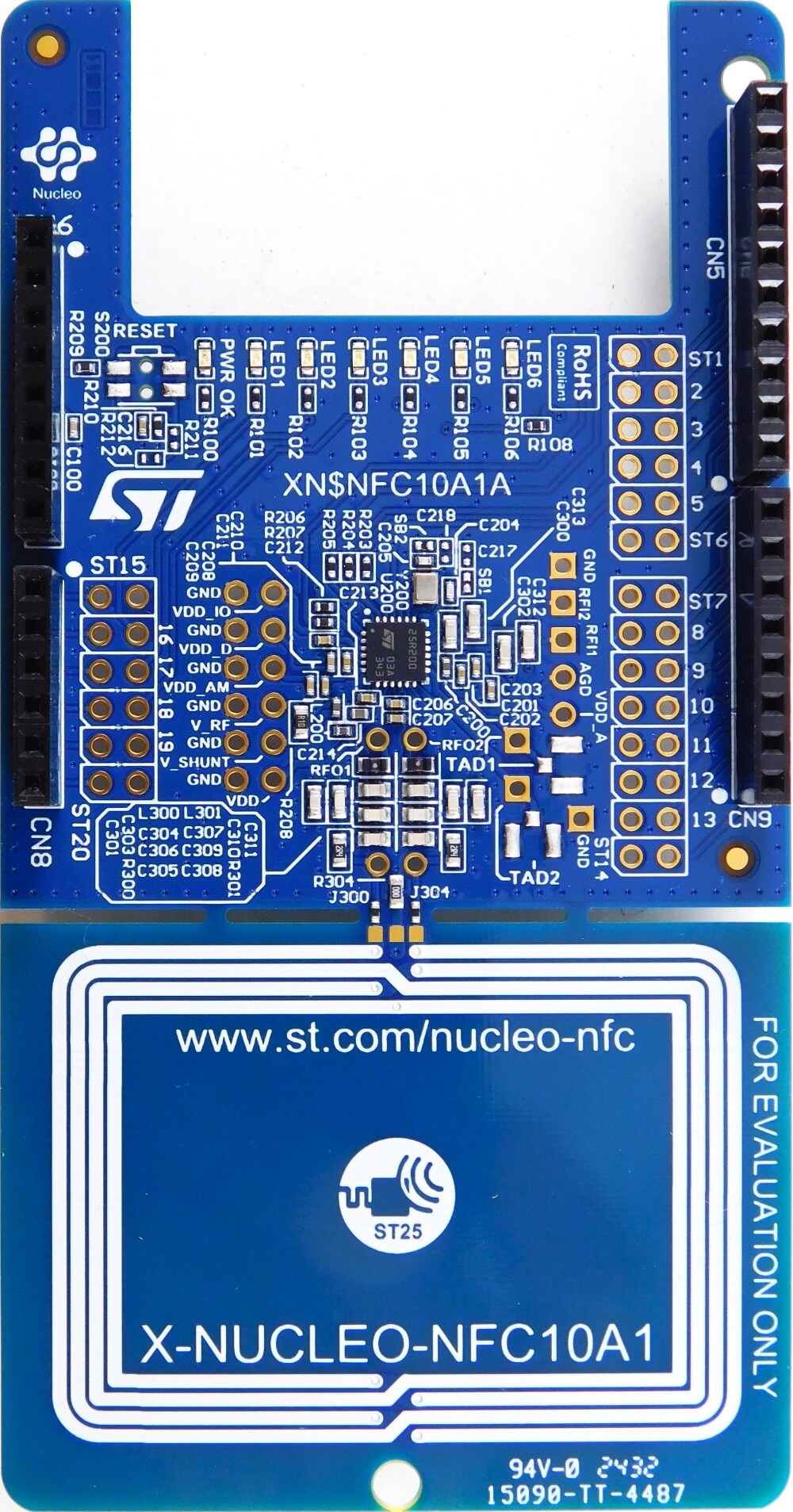

The X-NUCLEO-NFC10A1 NFC card reader expansion board is based on the ST25R200 device.
The expansion board is configured to support ISO14443A/B, ISO15693.
The ST25R200 manages frame coding and decoding in reader mode for standard applications, such as NFC, proximity, and vicinity HF RFID standards. It supports ISO/IEC 14443 type A/B and ISO/IEC 15693 RF communication protocols as well as the detection, reading and writing of NFC Forum type 1, 2, 4, and 5 tags.
It embeds a low power wake-up system capable of detecting an approaching tag. It also features a low power RC oscillator and wake-up timer to wake up the device automatically after a selected time period and check for a tag presence.
-
所有功能
- On-board NFC card reader IC: ST25R200
- 47 mm x 34 mm, four turns, 13.56 MHz inductive antenna etched on PCB and associated tuning circuit
- Six general-purpose LEDs
- ISO 14443A and ISO14443B
- ISO 15693
- Possibility of driving two antennas in single-ended configuration
- Equipped with Arduino UNO R3 connector
- Free comprehensive development firmware library compatible with STM32Cube and samples for ST25R200
- Scalable solution for multiple board cascade
- FCC certified
- RoHS and WEEE compliant
您可能还会喜欢...
特别推荐
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
Board Manufacturing Specifications (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 1.0 | 18 Jul 2024 | 18 Jul 2024 |
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 18 Jul 2024 | 18 Jul 2024 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 18 Jul 2024 | 18 Jul 2024 |
质量与可靠性
| 产品型号 | Marketing Status | 符合RoHS级别 | 材料声明** |
|---|---|---|---|
| X-NUCLEO-NFC10A1 | 批量生产 | Ecopack2 | |
X-NUCLEO-NFC10A1
Package:
Ecopack2Material Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
样片和购买
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | 供应商 | 核心产品 | Board production status | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| X-NUCLEO-NFC10A1 | | | distributors 无法联系到经销商，请联系我们的销售办事处 |
|
|
|
X-NUCLEO-NFC10A1 批量生产
