产品概述
描述

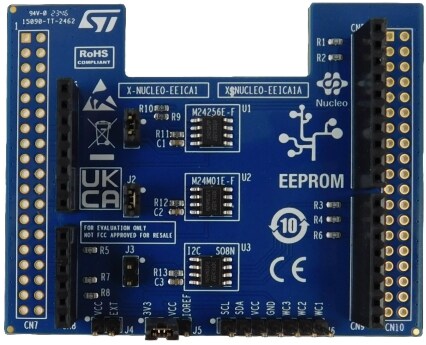

The X-NUCLEO-EEICA1 expansion board is designed for M24256E-F and M24M01E-F series I2C EEPROM for data reading and writing.
The expansion board acts as an external storage device that can be used to store data such as manufacturing traceability, calibration, user settings, error flags, data logs, and monitoring data to make applications more flexible and accurate.
-
所有功能
- M24256E-F: 256 Kbit serial I²C bus EEPROM with configurable device address
- M24M01E-F: 1 Mbit serial I²C bus EEPROM with configurable device address and software write protection registers
- Additional identification page
- Compatible with the following I²C bus modes:
- 1 MHz (fast mode plus)
- 400 kHz (fast mode)
- 100 kHz (standard mode)
- Preprogrammed device address (on demand)
- A free comprehensive development firmware library and sample implementation are available when the X-NUCLEO-EEICA1 expansion board is plugged on top of a NUCLEO-F401RE, NUCLEO-L053R8, NUCLEO-G474RE or NUCLEO-H743ZI development board
- Developer can choose and solder an EEPROM to be tested using the evaluation software provided
您可能还会喜欢...
特别推荐
所有资源
| 资源标题 | 版本 | 更新时间 |
|---|
Board Manufacturing Specifications (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| ZIP | 1.0 | 21 Dec 2023 | 21 Dec 2023 |
物料清单 (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 21 Dec 2023 | 21 Dec 2023 |
Schematic Pack (1)
| 资源标题 | 版本 | 更新时间 | ||
|---|---|---|---|---|
| 1.0 | 21 Dec 2023 | 21 Dec 2023 |
质量与可靠性
| 产品型号 | Marketing Status | 符合RoHS级别 | 材料声明** |
|---|---|---|---|
| X-NUCLEO-EEICA1 | 批量生产 | Ecopack2 | |
X-NUCLEO-EEICA1
Package:
Ecopack2Material Declaration**:
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
