产品概述
描述
L4995 is a family of monolithic integrated 5 V voltage regulators with a low drop voltage at currents of up to 500 mA, available in both 12 and 24 pin packages.
The output voltage regulating element consists of a p-channel MOS and regulation is performed regardless of input voltage transients of up to 40V.
The high precision of the output voltage is obtained using a pre-trimmed reference voltage. The L4995 family is protected against short circuit and overtemperature protection switches off the devices in the case of extremely high power dissipation. The L4995 integrates the watchdog, enable and externally programmable reset circuits. The L4995A features the externally programmable reset and enable. Finally the L4995R features the externally programmable reset.
The combination of such features makes this device particularly flexible and suitable to supply microprocessor systems in automotive applications.
-
所有功能
- AEC-Q100 qualified
- Operating DC supply voltage range 5.6 V to 31 V
- Low dropout voltage
- Low quiescent current consumption
- Reset circuit sensing of output voltage down to 1 V
- Programmable reset pulse delay with external capacitor
- Programmable watchdog timer with external capacitor
- Thermal shutdown and short circuit protection
- Wide temperature range (Tj = -40 °C to 150 °C)
- Enable input for enabling/disabling the voltage regulator

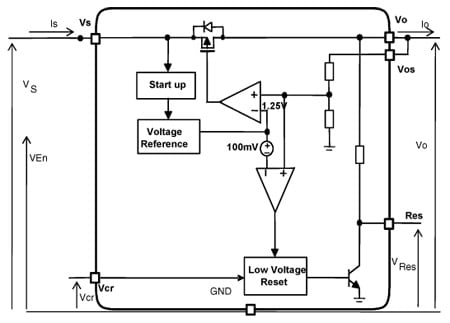

电路原理图
特别推荐
EDA符号、封装和3D模型
意法半导体 - L4995
Speed up your design by downloading all the EDA symbols, footprints and 3D models for your application. You have access to a large number of CAD formats to fit with your design toolchain.
Please select one model supplier :
符号
封装
3D模型
质量与可靠性
| 产品型号 | Marketing Status | 包 | 等级规格 | 符合RoHS级别 | 材料声明** |
|---|---|---|---|---|---|
| L4995AJTR | 批量生产 | PowerSSO 12 | 汽车应用 | Ecopack1 | |
| L4995AKTR | 批量生产 | PowerSSO 24 | 汽车应用 | Ecopack2 | |
| L4995J | 批量生产 | PowerSSO 12 | 汽车应用 | Ecopack1 | |
| L4995JTR | 批量生产 | PowerSSO 12 | 汽车应用 | Ecopack1 | |
| L4995KTR | 批量生产 | PowerSSO 24 | 汽车应用 | Ecopack2 | |
| L4995RJTR | 批量生产 | PowerSSO 12 | 汽车应用 | Ecopack1 | |
| L4995RKTR | 批量生产 | PowerSSO 24 | 汽车应用 | Ecopack2 |
(**) st.com上提供的材料声明表单可能是基于包装系列中最常用的封装的通用文档。因此，它们可能不是100%适用于特定的设备。有关特定设备的信息，请联系 销售支持。
You’re now leaving st.com and will be re-directed to our Partner’s website.
For the latest innovations and solutions from ST, sign up for our newsletters.
样片和购买
| 产品型号 | 供货状态 | Budgetary Price (US$)*/Qty | 从ST订购 | Order from distributors | 包 | 包装类型 | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Operating temperature (°C) | Operating Temperature (°C) (max) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 最小值 | 最大值 | |||||||||||||
| L4995AKTR | | | distributors 无法联系到经销商，请联系我们的销售办事处 | |||||||||||
| L4995JTR | | | distributors 无法联系到经销商，请联系我们的销售办事处 | |||||||||||
| L4995RKTR | | | distributors 无法联系到经销商，请联系我们的销售办事处 | |||||||||||
| L4995RJTR | | | distributors 无法联系到经销商，请联系我们的销售办事处 | |||||||||||
| L4995KTR | | | distributors 无法联系到经销商，请联系我们的销售办事处 | |||||||||||
| L4995AJTR | | | distributors 无法联系到经销商，请联系我们的销售办事处 | |||||||||||
| L4995J | | | distributors 无法联系到经销商，请联系我们的销售办事处 | |||||||||||
L4995AKTR 批量生产
L4995JTR 批量生产
L4995RKTR 批量生产
L4995RJTR 批量生产
L4995KTR 批量生产
L4995AJTR 批量生产
L4995J 批量生产
