STM32H753I-EVAL

产品概述

描述

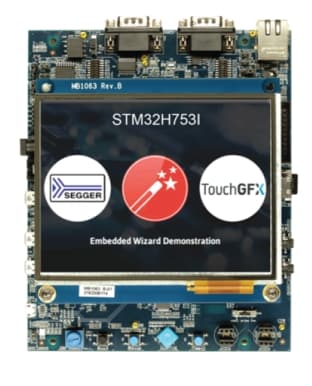

The STM32H743I-EVAL and STM32H753I-EVAL Evaluation boards (STM32H7x3I-EVAL) are high-end development platforms for the Arm^® Cortex^®‑M7-based STM32H743XI and STM32H753XI microcontrollers, respectively. The STM32H7x3I-EVAL Evaluation boards provide access to all the STM32 peripherals for user applications, and include an embedded ST-LINK debugger/programmer.

The full range of the STM32H7x3I-EVAL hardware features helps develop applications and evaluate all peripherals: USB OTG HS and OTG FS, Ethernet, CAN FD, USART, audio DAC and ADC, digital microphone, SRAM, SDRAM, NOR flash memory, twin Quad-SPI flash memory, microSD™ 3.0 card, 5.7” 640×480 TFT color LCD with touch panel, and cryptographic hardware accelerator (available only on STM32H753XI devices).

The expansion connectors provide an easy way to add specialized features, while ETM trace is supported through external probes.

所有功能
STM32H743XIH6 and STM32H753XIH6 Arm^® Cortex^®‑M7 microcontrollers with 2 Mbytes of flash memory and 1 Mbyte of RAM in a TFBGA240+25 package

5.7” 640×480 TFT color LCD with touch panel

Ethernet compliant with IEEE-802.3-2002

USB OTG HS and OTG FS

I²C compatible serial interface

RTC with rechargeable backup battery

SAI audio DAC

MEMS digital microphones

8-Gbyte (or more) SDIO 3.0 interface microSD™ card

8 M×32‑bit SDRAM, 1 M×16‑bit SRAM and 8 M×16‑bit NOR flash memory
1-Gbit twin Quad-SPI NOR flash memory or two 512-Mbit Quad-SPI NOR flash memories

Potentiometer

4 color user LEDs

Reset, wake up, tamper, or key buttons

Joystick with 4-direction control and selector

Board connectors:

Power jack

3 USB interfaces with Micro-AB connector

RS-232 communications

Ethernet RJ45

CAN FD‑compliant connection

Stereo headset jack including analog microphone input

2 audio jacks for external speakers

microSD™ card

JTAG/SWD and ETM trace

Extension connectors and memory connectors for daughterboard or wire-wrap board

Flexible power-supply options: ST-LINK USB V_BUS, USB connector, or external sources

On-board ST-LINK debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port

Comprehensive free software libraries and examples available with the STM32Cube MCU Package

Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench^®, MDK-ARM, and STM32CubeIDE
