B-LVDS7-WSVGA

批量生产
储存到myST

STM32开发板的LVDS TFT LCD模块

下载数据摘要
Order Direct

产品概述

描述

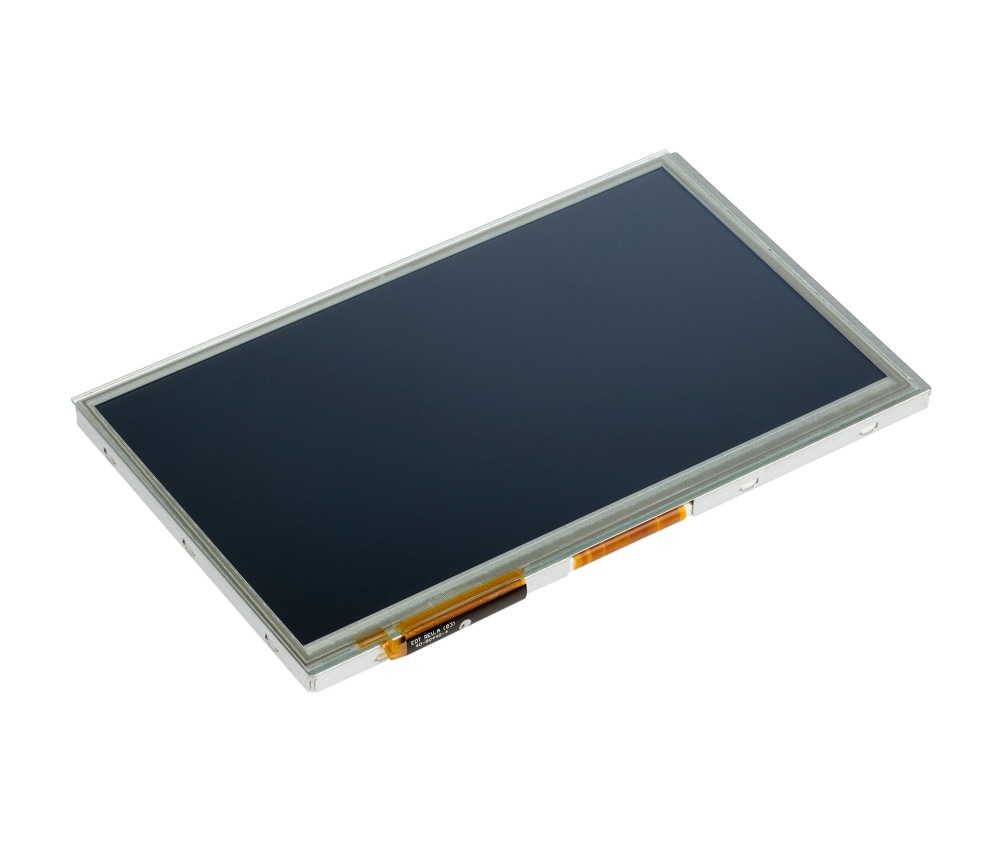

B-LVDS7-WSVGA模块提供具有电容式触控面板的7.0英寸TFT LCD。接口模式为LVDS。随附LVDS电缆和显示器支架。

  • 所有功能

    • 具有电容式触控面板的TFT LCD模块：
      • 显示器尺寸：7.0英寸
      • 格式：1024 (RGB) × 600像素
      • 1670万显示器色彩
      • 总体尺寸（宽×高×深）：166.2 × 100.3 × 11 mm
      • 有效面积（宽×高）：154.2144 × 85.92 mm
      • LCD类型：IPS
      • 视角方向：超宽视角
      • 接口模式：LVDS
      • 多点触控（五指）电容式触控面板
      • 3.3 V电源用于LCD和触控面板，5 V电源用于背光灯
